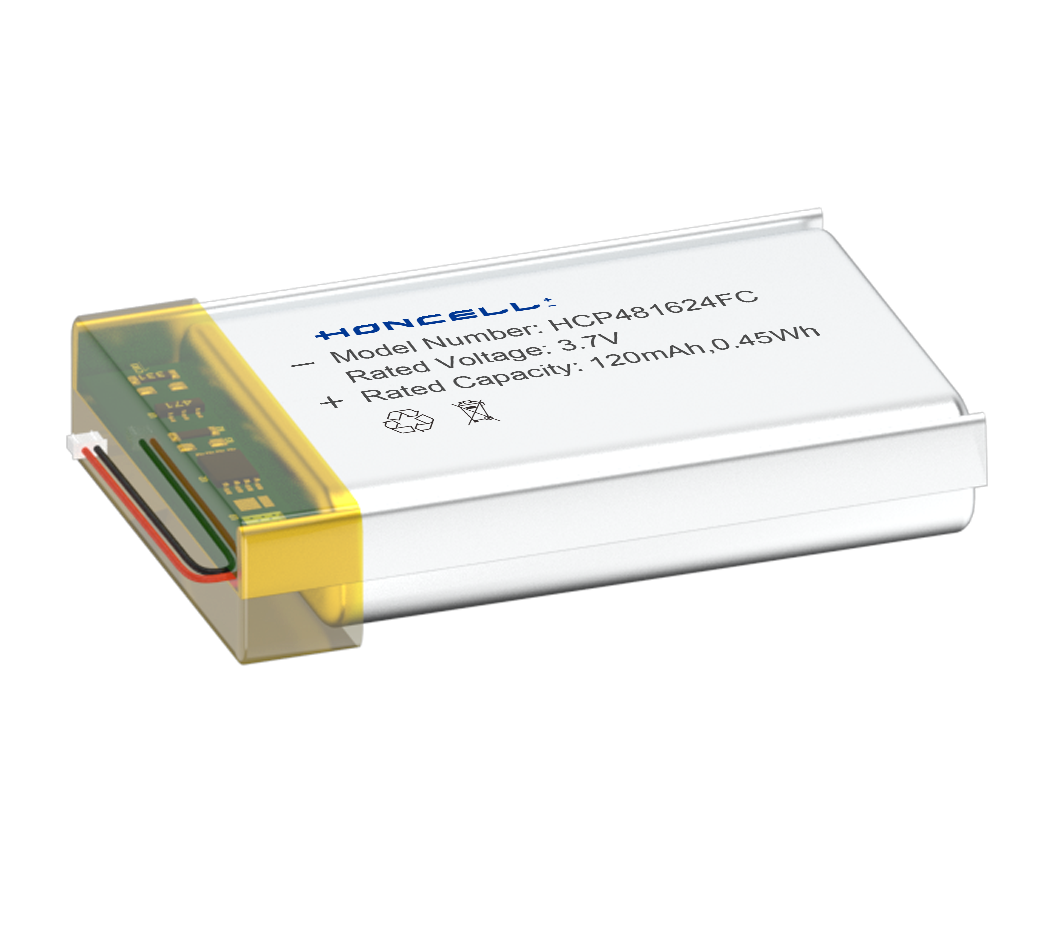

HCP Li-Polymer Battery Packs HCP481624FC

Compact and lightweight small size bartteries. Designed for micro devices, wearable tech, and IoT sensors. Ideal for portable and space constrained applications.

  • Parameters
  • Common Applications
  • Other Products
  • Handling Precautions & Guidelines

Parameters

  • Norminal Capacity: 120mAh
  • Rated Voltage: 3.7V
  • Weight: Appr. 4.5g
  • Dimensions (mm): 4.8(T)*16.5(W)*26.5(L)
  • Impedance: Max: 300mΩ
  • Standard Charge/Discharge: 0.2C
  • Max Charge/Discharge: 1.0C
  • Peak Discharge: 1.0C
  • Charge Temp: 0-45℃ (32-113℉)
  • Discharge Temp: -20-60℃ (-4-140℉)

HCP Li-Polymer Battery Packs Applications

Other HCP Li-Polymer Battery Packs

Model No. Voltage [V]Capacity [mAh]Thickness [mm]Width [mm]Length [mm]Impedance [≤mΩ]Weight [g]
HCP381120W
3.7
45
3.8
11.5
22.5
700
3.2
HCP202025W
3.7
50
3.0
20.5
27.5
700
3.5
HCP321322FC
3.7
50
10.4
13.5
24.6
750
12.5
HCP521114ZC
3.7
53
5.2
11.0
16.0
780
3.8
HCP501218NW
3.7
60
5.0
12.5
20.5
700
3.5
HCP501218W
3.7
60
5.0
12.5
20.5
680
2.9
HCP301520W
3.7
65
3.0
15.5
22.5
660
3.0
HCP451220W
3.7
70
4.6
12.6
22.5
620
3.5
HCP501021W
3.7
70
5.0
10.5
23.5
700
4.5
HCP451418W
3.7
75
4.5
14
20
650
4
HCP501119W
3.7
75
5
11.7
20.8
620
4
HCP501220W
3.7
80
5.0
12.0
22.5
560
3.3
HCP451223NZC
3.7
85
5.0
12.5
25.0
570
4.0
HCP301135W
3.7
90
3.0
11.5
37.0
420
3.5
HCP321423W
3.7
90
3.2
14
25
520
3.5
HCP351624W
3.7
90
3.5
16
25.5
520
3.5
HCP381920W
3.7
90
3.8
19.7
22.5
420
3.5
HCP511419W
3.7
90
5.1
14.5
21.5
520
5.0
HCP292022NW
3.7
98
3.1
20.0
24.0
400
5.0
HCP302222W
3.7
100
3.0
22.5
24.5
440
4.5
HCP401130ZC
3.7
105
4.0
11.5
32.5
420
5.5
HCP421624W
3.7
105
4.2
16.5
26.5
400
3.5
HCP292025NW
3.7
120
3.1
20
26.8
400
6
HCP401229ZC
3.7
120
4.0
12.0
31.0
420
4.5
HCP481619FC
3.7
120
4.0
12.0
31.0
420
4.5
HCP421428W
3.7
120
4.2
14.8
30.5
320
5.0
HCP481624FC
3.7
120
4.8
16.5
26.5
300
4.5
HCP481624W
3.7
120
4.8
16.5
26.5
320
4.5
HCP432020NZC
3.7
120
4.3
20.0
22.0
410
5.2
HCP601220FC
3.7
120
6.35
12.7
22.8
320
6
HCP401429FC
3.7
130
4.2
14.5
31.5
330
5.5
HCP382025W
3.7
130
4
20.6
25
320
6.5
HCP352024W
3.7
140
3.7
20.5
26.5
350
5.5
HCP302030ZC
3.7
140
3
20.5
32
350
5.5
HCP402025ZC
3.7
140
4.0
20.5
27.0
320
6.0
HCP501232W
3.7
145
5.0
12.5
34.5
320
5.5
HCP441526ZC
3.7
150
4.6
15.0
28.0
320
6.0
HCP621919FC
3.7
150
6.2
19.5
21.5
270
6.5
HCP272332W
3.7
165
3.0
23.5
34.0
420
5.5
HCP412025ZC
3.7
165
4.1
20.5
27
400
5.5
HCP421529W
3.7
170
4.25
15.5
31.0
320
6.0
HCP801818FC
3.7
170
8
18.5
20.5
320
9
HCP401926ZC
3.7
180
4.0
19.5
28.5
320
6.5
HCP402030ZC
3.7
180
4.0
20.5
32.5
250
6.5
HCP601525ZC
3.7
180
6
15.5
27.5
520
6
HCP282730ZC
3.7
200
3.1
27.0
32.0
350
6.0
HCP521238NZC
3.7
200
5.4
13.0
40.5
360
7.0
HCP502025NZC
3.7
200
5.0
20.5
27.0
320
7.0
HCP502025FC
3.7
200
5
20.5
27
320
7
HCP551726NW
3.7
220
5.5
17.0
28.0
290
7.0
HCP502028ZC
3.7
220
5.0
20.7
30.0
290
7.0
HCP501730ZC
3.7
230
5.0
17.5
32.5
320
7.0
HCP602025W
3.7
240
6.2
20.5
27.5
320
7.0
HCP252844FC
3.7
250
3.2
28.5
46.5
250
7.5
HCP402827FC
3.7
250
4.0
28.5
29.5
300
8.5
HCP551730W
3.7
250
5.5
17.5
32.5
250
7.8
HCP551828FC
3.8
250
5.5
18
30
240
7.5
HCP511924FC
3.8
250
5.1
19.6
25.9
240
7.5
HCP552027W
3.7
250
5.5
20.5
29.5
220
8.0
HCP552027FC
3.7
250
5.5
20.5
29
280
8
HCP502028NZC
3.7
250
5.2
20.5
30.5
280
7.5
HCP502030W
3.7
250
5.0
20.5
32.5
220
8.0
HCP502030NZC
3.7
250
5.0
20.5
32.5
240
8.0
HCP722022NZC
3.7
250
7.2
20.5
24.5
250
7.5
HCP501933NFC
3.7
260
5.2
19.5
35.5
330
8.0
HCP601436NW
3.7
260
6.5
14.5
38.5
320
8.5
HCP722023NZC
3.7
265
7.2
20.5
25.5
250
7.8
HCP382730NW
3.7
270
3.8
27.5
32.5
250
7.5
HCP101722W
3.7
270
10.2
17.5
24.0
320
7.5
HCP101821ZC
3.7
270
10.0
18.5
23.5
250
8.5
HCPX552030FC
3.7
275
5.5
20.5
32.5
280
8.5
HCP432730NFC
3.7
280
4.3
27.5
32.5
230
9.0
HCP801528NZC
3.7
280
8.0
15.5
30.5
320
8.5
HCP501828ZC
3.8
290
5.2
18.5
31.0
320
8.0
HCP451743NZC
3.7
300
4.5
17.0
49.0
320
8.5
HCP552027FC
3.8
300
5.5
20.5
29
240
7
HCP552028ZC
3.7
300
5.5
20.5
30.0
300
9.0
HCP302938ZC
3.7
310
3.2
29.5
40.5
250
8.5
HCP243540FC
3.8
330
2.4
35.5
47.0
320
9.0
HCP552133NFC
3.7
330
5.5
21.5
35.5
220
9.5
HCP702525NZC
3.7
330
7.0
25.5
27.5
320
12.0
HCP452135NZC
3.8
350
4.5
21.0
37.0
240
9.5
HCP482533FC
3.7
350
4.8
25.5
34.5
250
11
HCP452634FC
3.7
350
4.5
26.5
36.5
250
11
HCP901726NW
3.7
350
9.0
17.0
28.0
200
10.5
HCP322545ZC
3.7
360
3.2
25.5
47.5
240
9.5
HCP742224NFC
3.7
370
7.4
22.0
26.0
250
9.6
HCP652427W
3.7
380
6.5
24.5
29.5
250
9.5
HCP802423NFC
3.7
390
8.0
24.5
25.5
250
11.0
HCP403033ZC
3.7
400
4.0
30.5
35.5
270
10.5
HCP503030ZC
3.7
400
5.0
30.5
32.5
240
10.5
HCP602428W
3.7
400
6.0
24.5
30.0
220
10.0
HCP602428ZC
3.7
400
6.0
24.5
30.5
240
11.0
HCP702127W
3.7
400
7.0
21.5
29.5
250
10.0
HCP801831W
3.7
400
8.0
18.0
33.0
250
10.5
HCP922126ZC
3.7
400
9.2
21.5
28.0
220
10.0
HCP403040FC
3.7
420
4.0
30.5
42.5
200
11
HCP403040FC
3.7
420
4
30.5
42.5
200
11
HCP502734W
3.7
420
5.0
27.5
36.5
220
11.5
HCP602040W
3.7
420
6.0
20.5
42.0
250
11.0
HCP402447ZC
3.7
445
4.0
24.5
49.5
250
11.5
HCP402447NZC
3.7
445
4
24.5
49
250
11.5
HCP302084ZC
3.7
450
3.0
20.5
86.5
220
12.0
HCP652134W
3.7
450
6.5
21.5
36.5
240
7.5
HCP602530W
3.7
450
6
25.5
32.5
230
12.5
HCP382937-2S
7.4
450
8.2
30.5
40.5
240
17.5
HCP121432FC
3.7
450
12.5
14.0
35.0
230
11.5
HCP801740W
3.7
470
8.0
17.5
42.5
240
12.5
HCP542337NZC
3.7
480
5.4
23.5
39.5
230
12.0
HCP353048ZC
3.7
500
3.5
30.5
50.5
200
13.5
HCP402548NZC
3.7
500
4.0
25.0
50.0
220
12.0
HCP443038NFC
3.7
500
4.4
30.5
40.0
220
12.5
HCP652533W
3.7
500
6.5
25.5
35.5
200
12.5
HCP602535ZC
3.7
500
6.0
25.5
36.5
220
12.5
HCP602535PFC
3.7
500
6.0
25.5
37.0
240
12.5
HCP602535FC
3.7
500
6.0
25.5
37.0
210
12.5
HCP742527NFC
3.7
500
7.4
25.5
29.5
250
12.5
HCP702528ZC
3.7
500
7.0
25.0
30.0
240
12.0
HCP702530NFC
3.7
500
7.0
25.5
32.5
220
12.0
HCP603030NFC
3.7
520
6.0
30.5
32.5
180
13.5
HCP752033NZC
3.7
530
7.5
20.5
35.0
220
12.6
HCP702335ZC
3.7
550
7.0
23.5
37.5
240
12.5
HCP102028NZC
3.7
550
10.0
20.0
30.0
220
14.0
HCP502247FC
3.7
560
5.0
22.5
49.5
180
13.0
HCP452448ZC
3.7
580
4.5
24.5
50.5
200
14.0
HCP452446NFC
3.7
580
4.5
25.0
50.0
250
14.0
HCP502742NW
3.7
580
5.0
27.5
44.5
180
14.0
HCP502742FC
3.7
580
5.0
27.5
45.0
220
14.0
HCP432548NZC
3.7
600
4.5
25.0
50.0
220
14.5
HCP433737NW
3.7
600
4.3
37.5
39.5
250
14.0
HCP562248FC
3.7
600
5.6
22.5
50.5
220
14.0
HCP503040NFC
3.7
600
5.3
30.5
42.5
240
14.5
HCP503040PN
3.7
600
5.0
30.5
42.5
270
13.0
HCP503040PNZC
3.7
600
5
30.5
42.5
250
14
HCP293557NW
3.7
630
3.2
35.5
59.5
200
13.5
HCP601665ZC
3.7
630
6.0
16.5
67.5
220
15.5
HCP284053W
3.7
650
3.0
40.5
56.0
220
15.0
HCP403448NFC
3.7
650
4.0
34.5
50.5
180
15.5
HCP703030NFC
3.7
650
7.0
30.5
32.5
190
15.0
HCP643032NZC
3.7
680
6.4
30.5
34.5
200
15.5
HCP553436B
3.7
700
5.5
34.5
38
180
15.5
HCP782536NFC
3.7
700
7.8
25.5
38.5
180
16.5
HCP803030W
3.7
700
8.2
30.5
32.5
220
17.5
HCP102826NZC
3.7
700
10
28.5
28.5
200
16
HCP503240W
3.7
735
5.0
32.5
42.5
180
15.5
HCP433438W
3.8
750
4.55
34.5
40.5
200
14.0
HCP412161NZC
3.7
770
4.1
21.5
63.5
250
13.5
HCP803030NZC
3.7
770
8.0
30.5
32.5
320
17.5
HCP235471ZC
3.7
800
2.5
54.5
78.5
180
20.0
HCP235471W
3.7
800
3.1
54.7
73.5
220
21.0
HCP682940ZC
3.7
800
6.8
29.5
42.0
220
18.0
HCP902042NFC
3.7
800
9.0
20.5
44.5
230
18.5
HCP602548NZC
3.7
850
6.0
25.5
50.5
250
15.5
HCP752050ZC
3.7
850
7.7
20.5
52.5
180
18.5
HCP403058NFC
3.7
900
4.0
30.0
60.5
180
19.0
HCP693040W
3.7
900
6.9
30.5
43.0
180
18.5
HCP623536NZC
3.7
900
6.2
35
38
180
18
HCP902248FC
3.7
900
9.0
22.5
50.5
180
20.5
HCP902248ZC
3.7
900
9.0
22.5
50.5
220
19.0
HCP601873NZC
3.7
950
6.0
18.5
75.5
230
18.5
HCP803040ZC
3.7
950
8.0
30.5
42.8
250
23.0
HCP803040NZC
3.7
950
8.0
30.5
43.0
180
21.5
HCP102040PNFC-2S1P
7.6
950
10.2
20
44
240
29.5
HCP573246NZC
3.7
1000
5.9
32.0
48.5
180
22.0
HCP593343ZC
3.7
1000
5.9
33.5
45.5
180
19.0
HCPX523450NZC
3.7
1000
5.4
34.5
52.5
180
21.0
HCP523450FC
3.7
1000
5.2
34
52
220
19.5
HCP534740NZC
3.7
1000
5.3
47.5
42.5
180
23.0
HCPX613247NZC
3.7
1000
6.3
32.0
49.5
180
21.0
HCP603443NFC
3.7
1000
6.0
34.5
46.0
180
19.5
HCP733534ZC
3.7
1000
7.3
35.5
37.0
200
21.0
HCP503450NFC-2S1P
7.4
1000
10.5
34.5
53
240
36.5
HCP113028ZC
3.7
1000
11.0
30.0
30.0
180
19.5
HCP503448NZC
3.7
1050
5.0
34.5
50.5
180
24.0
HCP523450NZC
3.7
1050
5.4
34.5
52.5
180
22.0
HCP504046ZC
3.7
1050
5.0
40.5
48.5
180
21.5
HCP533550NZC
3.8
1100
5.3
35.0
52.5
180
20.5
HCP603838ZC
3.7
1100
6.0
38.5
41.0
180
19.5
HCP703442NFC
3.7
1100
7.0
34.5
45.0
180
23.0
HCP703440NZC
3.7
1150
7.0
34.5
42.0
200
20.5
HCP703440FC
3.7
1150
7.0
34.5
42.5
180
22.5
HCP403566NFC-3S1P
11.1
1150
12.7
36.5
71.5
280
59.0
HCPX504050PZC
3.7
1180
5.2
40.0
52.5
180
23.0
HCP373966HFC
3.7
1200
3.7
39.5
68
180
21.5
HCP306063NZC
3.7
1200
3.2
60.5
66.0
180
23.5
HCP653248W
3.7
1200
6.5
32.5
50.5
180
24.0
HCP673346NFC
3.7
1200
6.7
33.5
48.5
180
23.5
HCP603448FC
3.7
1200
6
34
50
200
21.5
HCP633449NW
3.7
1200
6.5
34.0
51.5
180
22.5
HCP643450ZC
3.7
1200
6.4
34.5
52.5
150
24.0
HCP643450NFC
3.7
1200
6.6
34
52
180
24.5
HCP603648NW
3.7
1200
6.0
36.0
50.0
180
22.5
HCP603650W
3.7
1200
6.0
36.0
53.0
200
24.5
HCP802449PNZC
3.7
1200
8.2
24
52
180
19
HCP853437ZC
3.7
1200
8.5
34.5
40.0
200
24.5
HCP503562NZC
3.7
1250
5.0
35.5
64.5
200
24.5
HCP703445NFC
3.7
1250
7.2
34.5
47.0
200
23.5
HCP903138NW
3.7
1250
9.0
31.5
40.5
180
21.0
HCP703448NZC
3.7
1300
7.0
34.5
50.5
180
25.5
HCP753450FC
3.7
1300
7.5
34.5
52.5
180
27.0
HCP803048ZC
3.7
1300
8.2
30.5
51
150
24
HCP534048NZC
3.7
1350
5.5
40.0
50.5
200
29.0
HCP703744NFC
3.7
1350
7.0
37.0
46.5
180
25.5
HCP703943ZC
3.7
1350
7.0
39.5
46.0
180
25.0
HCP703744NFC-3S1P
11.1
1350
7.5
113.5
49.5
360
70.0
HCP883537ZC
3.7
1380
9.0
35.5
39.5
180
25.0
HCP484555W
3.7
1400
4.8
45.5
57.5
180
25.0
HCP503764NZC
3.7
1400
5.0
37.5
67.0
180
26.0
HCP603952NZC
3.7
1400
6.2
39.5
53.8
200
26.5
HCP801695PNZC
3.7
1400
8.0
16.8
98.0
180
26.5
HCP912060FC
3.8
1400
9.1
20
63.5
180
25
HCP912060NFC
3.8
1400
9.1
20
63.5
180
25
HCP454564NZC-2S1P
7.4
1400
9.5
45.5
67.0
300
56.0
HCP754335FC
3.7
1440
7.5
43.0
37.5
180
25.5
HCP315772NFC
3.7
1500
3.3
57.5
75.0
180
28.0
HCP395257ZC
3.7
1500
4.1
52.5
60
180
26.5
HCP603466LNFC
3.7
1500
6.2
34.5
69
180
31
HCP952260W
3.7
1500
9.5
22.5
62.5
180
29.0
HCP404074NZC
3.7
1600
4.2
40.5
77.0
180
26.0
HCP583759W
3.7
1600
6.0
37.5
61.5
180
27.5
HCP605050W
3.7
1600
6.0
50.5
53.0
180
32.0
HCP853450NFC-2S1P
7.4
1600
17.5
34.5
53
240
59
HCP405055NW
3.7
1610
4.5
50.5
58.0
180
28.5
HCP502699ZC
3.7
1650
5.2
26.5
101.5
180
28.5
HCP802294NZC
3.7
1650
8.0
22.5
96.5
180
36.5
HCP603759W
3.7
1670
6.2
37.5
61.5
180
28.5
HCP584450PZC-2S1P
7.4
1710
12.2
46.7
53.3
200
58.0
HCP364288NZC
3.7
1800
3.6
42.5
90.2
180
29.4
HCP302938NW
3.7
1800
3.6
42.5
90.5
180
29.5
HCP694055ZC
3.7
1800
6.9
40.5
57.0
180
32.5
HCPX386162ZC-2S1P
7.4
1800
8
62
65.5
240
63
HCP103450ZC
3.7
1800
10.2
34.5
52.5
180
36.5
HCP103450NZC
3.7
1800
10.0
34.5
52.5
180
36.5
HCP103450FC
3.7
1800
10.2
34.5
52.5
180
36.5
HCP103450LNFC
3.7
1800
10.2
34.5
52
180
38
HCP623536ZC-1S2P
3.7
1800
13.0
36.0
39.0
180
33.0
HCP103450NZC-2S1P
7.4
1800
20.5
35.0
53.5
280
71.0
HCP504557ZC-2S1P
7.4
1850
10.6
46.0
60.5
240
73.0
HCP804653NFC
3.7
1900
8.0
46.5
56.0
180
40.5
HCP103450PNZC
3.7
1900
10.0
34.5
53.0
150
35.0
HCP103450W
3.7
1900
10.0
34.5
53.0
150
35.0
HCP103450NFC
3.7
1900
10.2
34.5
53
180
35
HCP103450N
3.7
1900
10.0
34.5
58.0
150
35.0
HCP113047FC
3.7
1950
11.2
30.0
50.5
180
33.5
HCP564272FC
3.7
2000
5.6
42.5
75.0
180
34.0
HCP534564W
3.7
2000
5.3
45.5
66.5
180
32.0
HCP534564NZC
3.7
2000
5.3
45.5
66.5
180
32.5
HCP554860W
3.7
2000
5.5
48.5
62.5
180
33.5
HCP903562ZC
3.7
2000
9.0
35.5
65.0
180
40.5
HCP1019106NFC
3.7
2000
10.0
19.5
108.0
180
38.0
HCP104040NZC
3.7
2000
10.2
40.5
43.0
180
33.0
HCP564272NFC-3S1P
11.1
2000
17.5
43.0
75.0
280
100.0
HCP103450NFC-2S1P
7.4
2000
20.5
34.5
53
240
70
HCP123244ZC
3.7
2030
12.0
32.5
46.0
180
35.0
HCP704260ZC
3.7
2100
7
42
62.7
180
37
HCP804055ZC
3.7
2100
8.0
40.5
57.0
180
37.5
HCP634061NFC
3.7
2150
7.0
41.0
64.0
180
34.5
HCP534564NW
3.7
2200
5.5
45.5
67.0
180
36.5
HCP704454ZC
3.7
2200
7
44
56.5
180
37
HCP103848ZC
3.7
2200
10.0
38.5
49.5
180
40.3
HCP103848NFC
3.7
2200
10.0
38.5
50.5
180
40.3
HCP123840ZC
3.7
2200
12.0
38.0
42.0
180
38.0
HCP756060FC-1S2P
3.7
2200
15.5
61.0
63.5
180
109.5
HCP853435ZC-1S2P
3.7
2200
17.5
35.0
38.5
180
43.5
HCP564270NZC
3.7
2300
5.6
42.5
73.0
180
33.5
HCPX803865ZC
3.7
2300
8.2
38.5
68
180
43.5
HCP505165FC-2S1P
7.4
2300
10.5
52.0
68.5
280
69.0
HCP114040FC
3.7
2300
11.6
40.5
42.0
200
40.0
HCP114040ZC
3.7
2300
11.0
40.5
43.0
180.0
39.0
HCP565067NFC-3S1P
11.1
2300
18.0
52.0
71.0
360
116.0
HCP114043NFC
3.7
2350
11.0
40.0
45.0
180
39.0
HCP375292W
3.7
2400
3.9
52.5
94.5
180
39.0
HCPX535178ZC-2S1P
7.4
2400
11.2
51.5
82.0
240
95.0
HCPX535178FC-2S1P
7.4
2400
11.2
51.5
82.0
240
95.0
HCP703875NW-2S1P
7.4
2400
14.6
39.0
78.5
180
80.0
HCP306887NZC
3.7
2500
3.2
68.5
90.0
200
47.0
HCP306887ZC
3.7
2500
3.2
68.5
90.0
200
47.0
HCP306887NFC
3.7
2500
3.2
68.5
90
200
47
HCP536062W-2S1P
7.4
2500
5.5
65.5
121.5
240
73
HCP653784NZC
3.7
2500
6.5
37.5
86.5
180
42.5
HCP705054ZC
3.7
2500
7
50.5
56.5
180
40
HCPX755152NFC-2S1P
7.4
2500
15.5
51.5
55
240
80
HCP763871ZC
3.7
2570
7.6
38.5
73.0
180
42.5
HCP6628101ZC
3.7
2600
6.6
28.5
103
180
38.5
HCP104844NFC
3.7
2600
10.2
48.0
46.5
150
45.0
HCP113453ZC
3.7
2620
11.2
34.0
55.5
200
48.0
HCP104545ZC
3.7
2650
10.2
45.5
47.0
150
47.0
HCP113355TZC
3.7
2650
11.2
33.5
57.5
200
39.0
HCP705064NFC
3.7
2700
7.0
50.5
66.0
120
45.0
HCP804262W
3.7
2700
8.0
42.0
64.5
180
44.0
HCP654270FC
3.7
2800
6.5
42.5
72.5
180
40.5
HCP703986NW
3.7
2800
7.0
39.5
89.0
180
48.0
HCP685163ZC
3.7
2800
7.0
52.0
66.0
180
47.5
HCP103848NFC-3S1P
11.4
2800
11.6
116.5
54.5
410
126.0
HCP845251ZC
3.7
2850
8.6
52.5
54
180
48.5
HCP864167FC
3.7
3000
8.6
41.5
69.0
180
48.5
HCP104060NZC
3.7
3000
10.0
40.5
62.5
180
50.5
HCP104060FC
3.7
3000
10.0
40.0
62.5
180
46.0
HCP104060ZC
3.7
3000
10.0
40.5
62.5
180
48.5
HCPX104060FC
3.7
3000
10.0
40.0
62.5
180
50.5
HCP1034060NFC
3.7
3000
10.3
40.5
63.0
180
52.5
HCPX516570ZC-2S1P
7.4
3000
10.8
65.6
73.2
200
105.0
HCPX516570FC-2S1P
7.4
3000
10.8
65.6
73.2
200
105
HCP114053NZC
3.7
3000
11.0
40.5
55.5
180
48.5
HCP124046NFC
3.7
3000
12.8
40.2
49.0
180
47.0
HCPX104060FC-2S1P
7.4
3000
20.6
40.5
63
240
97
HCP104060FC-2S1P
7.4
3000
20.2
40.5
63
240
97
HCP124052ZC
3.7
3100
12.0
40.5
55.0
180
52.0
HCP436185NZC
3.7
3300
4.3
61.5
88.0
180
45.5
HCP705076NFC-3S1P
11.1
3450
22.0
51.0
80.0
280
155.0
HCP455885W
3.8
3500
4.5
58.5
88.0
180
46.0
HCP855160NFC
3.7
3700
8.7
51.0
62.0
150
53.5
HCP506290FC
3.7
3850
5.0
62.5
93.0
180
58.5
HCP625374NW
3.8
3900
6.4
53.5
76.5
180
49.0
HCP4553102W
3.8
4000
4.75
53.0
104.5
180
50.0
HCP4564102W
3.7
4000
4.7
64.5
104.5
180
59.5
HCP606090NW
3.7
4000
6.0
60.0
92.5
180
61.5
HCP7532134ZC
3.7
4000
7.5
32.5
137.0
180
65.5
HCP705580ZC
3.7
4000
7.0
55.5
82.5
180
61.5
HCP104065NZC
3.8
4000
10.0
40.5
68.0
180
52.5
HCPX606090FC-2S1P
7.4
4000
12.6
60.5
93
240
135
HCP974774W-3S1P
11.1
4000
25.5
47.0
78.0
280
197.0
HCP675175PNFC
3.8
4080
7
51.5
78
180
54.5
HCP805181ZC
3.7
4400
8.2
51.5
84
180
70
HCP103450ZC-1S2P
3.7
4400
20.5
35.0
53.5
180
70.5
HCP103848ZC-1S2P
3.7
4400
20.5
39.0
51.5
180
74.5
HCP783858W-2S2P
7.4
4500
32.0
38.5
62.0
180
137.0
HCP477790ZC
3.7
4600
4.7
77.5
92.5
210
68.5
HCP386576ZC-1S2P
3.7
4800
4.6
68.6
167.6
160
75.5
HCP735977NFC
3.7
4800
7.5
59.5
80.0
180
78.0
HCP805085NZC
3.7
4800
8.0
50.5
88.0
180
69.0
HCP9734105NZC-2S1P
7.4
4800
20
34.5
108
240
157
HCP4188110W-2S1P
7.4
5000
4.3
115.5
177.5
240
142
HCP5070110ZC
3.7
5000
5.2
70.0
112.5
180
80.0
HCP795576FC
3.7
5000
7.9
55.5
78.5
180
65.5
HCP865580N
3.7
5000
8.6
55.0
82.5
180
75.5
HCP105463NFC
3.7
5000
10.0
54.5
66.0
180
69.0
HCPX905580FC-2S1P
7.4
5000
18.6
55.5
83
240
165
HCP5149133ZC
3.7
5100
5.1
49.5
135.0
180
67.5
HCP953998NZC
3.7
5200
9.5
39.5
100.8
180
73.5
HCP3775131W
3.7
5300
3.9
75.5
133.5
180
73.5
HCP6353106PNFC
3.8
5770
6.3
53
108.5
180
70.5
HCP4664143W
3.7
5800
4.6
64.5
146.0
180
84.0
HCP6955108NZC
3.7
6000
6.9
55.5
110.0
180
82.0
HCP906090NZC
3.7
6000
9.0
60.5
92.5
180
93.0
HCP906090W
3.7
6000
9.0
60.5
93.5
180
105.0
HCP106080NW
3.7
6000
10.2
60.0
82.5
180
100.0
HCP124574FC
3.7
6000
12.7
45.5
76.5
180
78.5
HCP906090FC-2S1P
7.4
6000
18.6
61.0
93.5
280
184.0
HCP1234105NZC
3.7
6100
12
34.5
108
120
85
HCP116168NZC
3.7
6200
11.1
61.0
70.0
120
89.0
HCP976077FC-2S1P
7.4
6600
20.0
60.5
80.0
200
175.0
HCP986077NFC
3.7
6700
10
60
80
120
87.5
HCP976077NZC-2S1P
7.4
6700
20.0
60.0
80.0
180
172.0
HCP116472PNW-3S1P
11.1
6750
32
64.5
75
260
245
HCP766387PNZC
3.8
6780
7.6
63.5
89.5
180
87.5
HCP106090NZC
3.7
7000
10.5
60.5
93.0
180
116.5
HCP8158111W-3S1P
11.1
8100
25.0
59.0
115.0
300
385.0
HCP7545152W-3S1P
11.1
8200
23.2
46.0
156.0
300
372.0
HCP635973W-1S2P
3.8
8900
13.1
60.0
77.0
250
116.0
HCP607085LNFC-1S2P
3.7
9000
12.5
71
88.5
150
165
HCP103685NZC-3S2P
11.1
9000
32.5
39.5
89.0
150
440.0
HCP10559103FC-2S1P
7.4
9300
21.8
60.0
106.0
250
246.0
HCP635973W-1S3P
3.8
13350
19.5
60.5
78.0
180
162.5
HCP5662158NZC-2S2P
7.4
15000
11.5
124.5
161
180
445

Handling Precautions & Guidelines

  • Can the battery be customized?

    Yes, we provide tailored solutions to meet our customers' precise needs. Our customization options include size, capacity, voltage, maximum discharge rate, and other parameters. Contact us to explore how we can create a battery solution that fits your requirements perfectly.

  • Are there any special storage requirements for the battery?

    Li-ion batteries should be stored in a cool, dry place, shielded from direct sunlight and heat sources. Following our storage guidelines is advisable to ensure optimal battery performance and safety.

  • What is the charging time of the battery?

    Generally, Honcell's batteries can be fully charged in 0.5 to 3 hours, depending on the charging current and the capacity of the battery.

Learn More

Explore the power of battery with us

Inquiry Now
Latest News
Contact Us

Let Us Know Your Needs And Get A Quick Reply.

I have read and agree 《Privacy Policy》

Submit

Explore the power of battery with us

Inquiry Now
Contact Us

Let Us Know Your Needs And Get A Quick Reply.

I have read and agree 《Privacy Policy》

Submit
