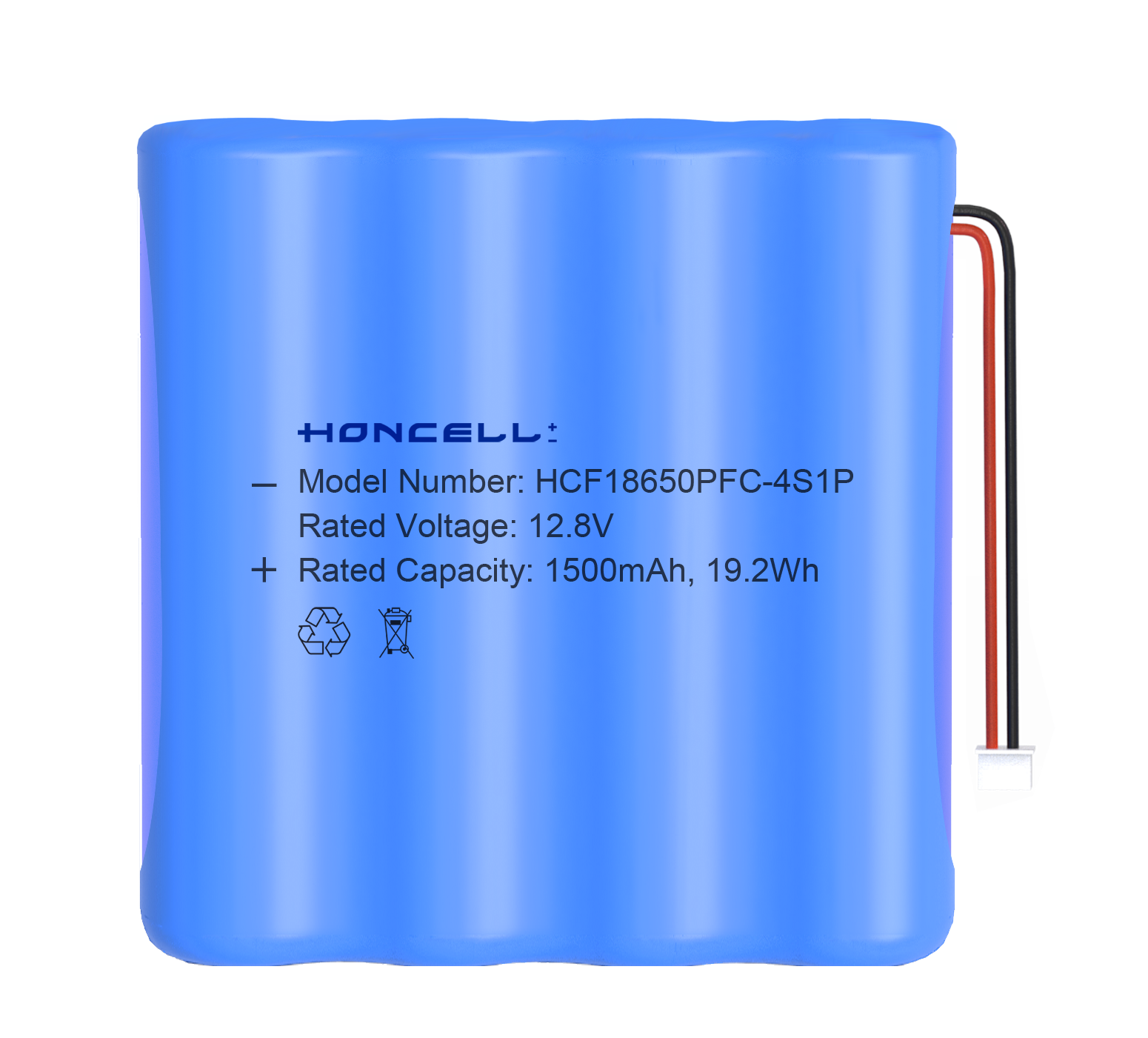

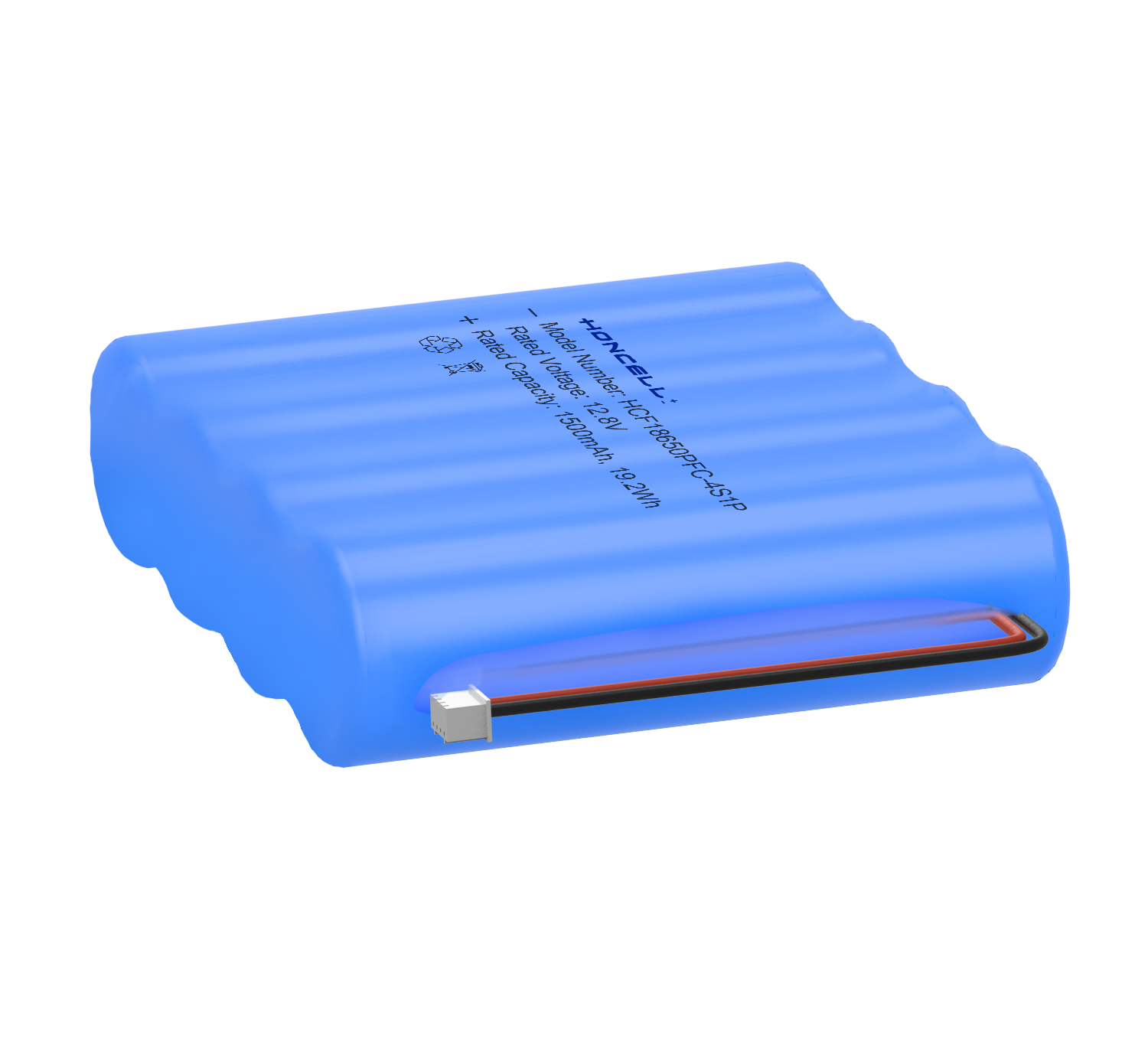

HCF LiFePO4 Battery Packs HCF18650PFC-4S1P
-
DATASHEET-HCF18650PFC-4S1P-12.8V 1500mAh-PACK2024(ED-RE-01).pdf
-
DATASHEET-HCF18650-3.2V 1500mAh-CELL2024.pdf
-
Common Connectors Serial.pdf
-
Battery Directive.PDF
-
HCF18650PFC-4S1P-1.2m Drop Test.pdf
-
HCF18650PFC-4S1P-UN38.3 Test Summary
-
HCF18650PFC-4S1P-UN38.3 Test Report
-
HCF18650PFC-4S1P-MSDS
-
HCF18650PFC-4S1P-Maritime Transport Identification Report
-
HCF18650PFC-4S1P-Air Transport Identification Report
-
HCF18650PFC-4S1P-IEC62133
-
HCF18650PFC-4S1P-CE
-
Parameters
-
Other Products
Parameters
-
Norminal Capacity: 1500mAh -
Rated Voltage: 12.8V -
Dimensions (mm): 22.0(T)*75.0(W)*72.5(L) -
Max. Discharge: 1C -
Standard Charge/Discharge: 0.2C -
Max Charge/Discharge: 1C -
Peak Discharge: 2C -
Charge Temp: 0-45℃ (32-113℉) -
Discharge Temp: -20-60℃ (-4-140℉)
HCF LiFePO4 Battery Packs Applications
Other HCF LiFePO4 Battery Packs
| Model No. | Voltage [V] | Capacity [mAh] | Thickness [mm] | Width [mm] | Length [mm] | Max. Discharge [C] |
|---|---|---|---|---|---|---|
3.2 | 330 | 3.4 | 38.6 | 39.1 | ||
12.8 | 1500 | 19.5 | 38 | 138.5 | ||
12.8 | 1500 | 19.5 | 38 | 138.5 | ||
12.8 | 1500 | 22.0 | 75.0 | 72.5 | 1 | |
6.4 | 2000 | 21.0 | 38.0 | 67.5 | 2.0 | |
12.8 | 3300 | 27.5 | 107.0 | 72.0 | 1.2 | |
3.2 | 3600 | 21.0 | 38.0 | 67.5 | 0.5 | |
3.2 | 4000 | 21.0 | 38.0 | 67.5 | 0.5 | |
6.4 | 4000 | 23.0 | 76.0 | 76.0 | 0.5 | |
12.8 | 7800 | 28.0 | 75.0 | 215.0 | 0.2 | |
3.2 | 8000 | 22.0 | 75.0 | 72.0 | 0.5 | |
3.2 | 10000 | 21.0 | 94.5 | 67.5 | 0.2 | |
25.6 | 50000 | 218.0 | 185.0 | 339.0 | 1.0 | |
12.8 | 100000 | 218.0 | 185.0 | 339.0 | 0.5 |
